CASA I/O: Combining data from multiple observations

WARNING: Tutorial under construction

%load_ext autoreload
%autoreload 2

Import to Python

from casatools import msmetadata
from casatasks import uvcontsub, cvel, listobs
import casatools
import numpy as np
import os
from glob import glob
from tqdm import tqdm
from astropy.constants import c

path = "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_bary_10kms.ms.split.cal.contsub"
path = "/home/darthbarth/Big_red/NGC4697/NGC4697_bary_phaseshifted_10kms.ms.split.cal.contsub"

msmd = casatools.msmetadata()
ms = casatools.ms()

msmd.open(path)
spws = msmd.datadescids()
msmd.done()
print(spws)

[0 1]

SPW 0 (low res)

ms.open(path)
# select the spectral window
ms.selectinit(datadescid=0)
query = ms.getdata(["WEIGHT", "UVW", "ANTENNA1", "ANTENNA2", "WEIGHT", "FLAG", "FLAG_ROW", "DATA", "AXIS_INFO"])
ant1 = query["antenna1"]
ant2 = query["antenna2"]
uvw = query["uvw"]
weight = query["weight"]
flag = query["flag"]
flag_rows = query["flag_row"]
data = query["data"]
info = query["axis_info"]
# always a good idea to reset the earmarked data
ms.selectinit(reset=True)
ms.close()

True

chan_freq = info["freq_axis"]["chan_freq"]
chan_freq = chan_freq.flatten()  # Hz
nchan = len(chan_freq)

np.sum(flag)

1231200

np.sum(flag_rows)

7695

flag = np.logical_or(flag, flag_rows[None, None, :])   # (npol, nchan, nvis)

Remove autocorrelations

xc = np.where(ant1 != ant2)[0]
data = data[:, :, xc]
flag = flag[:, :, xc]
uvw = uvw[:, xc]
weight = weight[:, xc]

Average polarizations

data = np.sum(data * weight[:, np.newaxis, :], axis=0) / np.sum(weight, axis=0)
flag = np.any(flag, axis=0)
weight = np.sum(weight, axis=0)

Mask

# when indexed with mask, returns valid visibilities
mask = ~flag

Reshaping

uu, vv, ww = uvw  # unpack into len nvis vectors
# broadcast to the same shape as the data
# stub to broadcast uu,vv, and weights to all channels
broadcast = np.ones((nchan, 1))
uu = uu * broadcast
vv = vv * broadcast
weight = weight * broadcast

from astropy.constants import c
max_uv_coord = np.max((np.max(np.abs(vv)), np.max(np.abs(uu))))
npix = 501
fov_arcseconds = 206265*npix/(2*max_uv_coord)

lam_hr   = c.value / chan_freq[:, None]              # (nchan,1)
w_lam_hr = (ww * np.ones((nchan,1))) / lam_hr        # (nchan, nvis)
w_rms    = np.sqrt(np.mean(w_lam_hr**2))

theta = (fov_arcseconds*np.pi/648000.0) / 2.0           # half-FoV in radians
print("w_rms * theta^2 ≈", float(w_rms * theta**2))

w_rms * theta^2 ≈ 1582.0840413108156

Convert uu and vv to lambda, frequencies to GHz

# calculate wavelengths in meters
wavelengths = c.value / chan_freq[:, np.newaxis]  # m

# calculate baselines in lambda
uu = uu / wavelengths  # [lambda]
vv = vv / wavelengths  # [lambda]

frequencies = chan_freq * 1e-9  # [GHz]

import matplotlib.pyplot as plt

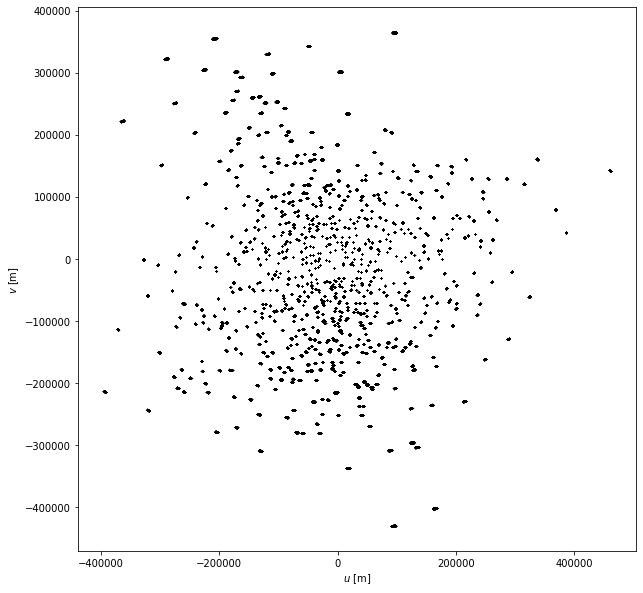

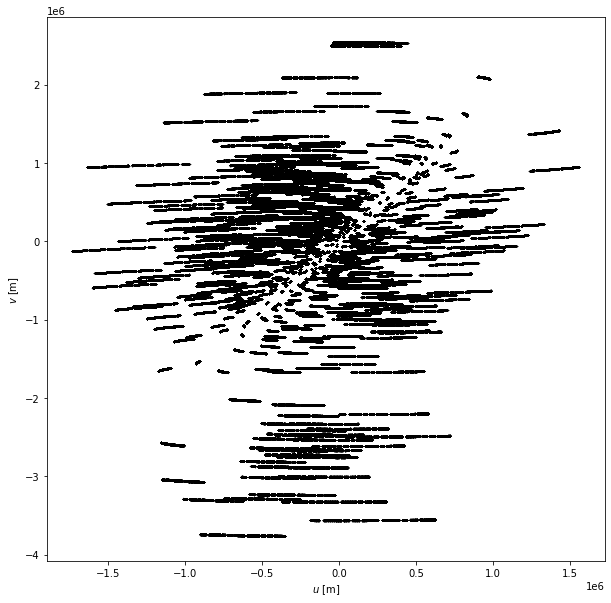

fig, ax = plt.subplots(nrows=1, figsize=(10, 10))
ax.scatter(uu[::5], vv[::5], s=1.5, linewidths=0.0, c="k")
ax.set_xlabel(r"$u$ [m]")
ax.set_ylabel(r"$v$ [m]")

Text(0, 0.5, '$v$ [m]')

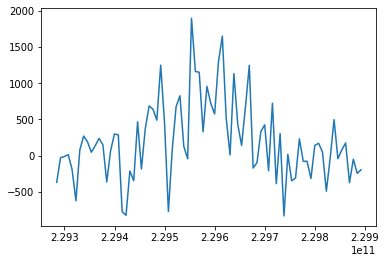

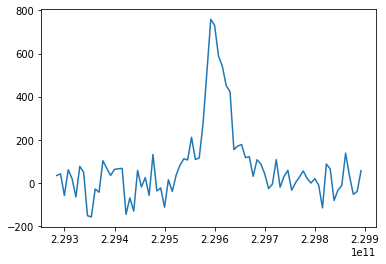

plt.plot(chan_freq, np.sum(data.real, axis = 1))

[<matplotlib.lines.Line2D at 0x7f464256ef98>]

# save data to numpy file for later use
np.savez(
    "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_visibilities_low_res_test_flagged_rows.npz",
    frequencies=chan_freq,  # [Hz]
    uu=uu,  # lambda]
    vv=vv,  # [lambda]
    weight=weight,  # [1/Jy^2]
    data=data,  # [Jy]
    mask=mask,  # [Bool]
)

SPW 1 (high res data)

ms.open(path)
# select the spectral window
ms.selectinit(datadescid=1)
query = ms.getdata(["WEIGHT", "UVW", "ANTENNA1", "ANTENNA2", "WEIGHT", "FLAG", "FLAG_ROW", "DATA", "AXIS_INFO"])
ant1_hr = query["antenna1"]
ant2_hr = query["antenna2"]
uvw_hr = query["uvw"]
weight_hr = query["weight"]
flag_hr = query["flag"]
flag_rows_hr = query["flag_row"]
data_hr = query["data"]
info_hr = query["axis_info"]
# always a good idea to reset the earmarked data
ms.selectinit(reset=True)
ms.close()

True

chan_freq_hr = info_hr["freq_axis"]["chan_freq"]
chan_freq_hr = chan_freq_hr.flatten()  # Hz
nchan = len(chan_freq_hr)

flag_hr = np.logical_or(flag_hr, flag_rows_hr[None, None, :])   # (npol, nchan, nvis)

Remove autocorrelations

xc = np.where(ant1_hr != ant2_hr)[0]
data_hr = data_hr[:, :, xc]
flag_hr = flag_hr[:, :, xc]
uvw_hr = uvw_hr[:, xc]
weight_hr = weight_hr[:, xc]

Average polarizations

data_hr = np.sum(data_hr * weight_hr[:, np.newaxis, :], axis=0) / np.sum(weight_hr, axis=0)
flag_hr = np.any(flag_hr, axis=0)
weight_hr = np.sum(weight_hr, axis=0)

Mask

# when indexed with mask, returns valid visibilities
mask_hr = ~flag_hr

Reshaping

uu_hr, vv_hr, ww_hr = uvw_hr  # unpack into len nvis vectors
# broadcast to the same shape as the data
# stub to broadcast uu,vv, and weights to all channels
broadcast = np.ones((nchan, 1))
uu_hr = uu_hr * broadcast
vv_hr = vv_hr * broadcast
weight_hr = weight_hr * broadcast

from astropy.constants import c
max_uv_coord = np.max((np.max(np.abs(vv_hr)), np.max(np.abs(uu_hr))))
npix = 301
fov_arcseconds = 206265*npix/(2*max_uv_coord)

lam_hr   = c.value / chan_freq_hr[:, None]              # (nchan,1)
w_lam_hr = (ww_hr * np.ones((nchan,1))) / lam_hr        # (nchan, nvis)
w_rms    = np.sqrt(np.mean(w_lam_hr**2))

theta = (fov_arcseconds*np.pi/648000.0) / 2.0           # half-FoV in radians
print("w_rms * theta^2 ≈", float(w_rms * theta**2))

w_rms * theta^2 ≈ 128.14822419181672

Convert uu and vv to lambda, frequencies to GHz

# calculate wavelengths in meters
wavelengths_hr = c.value / chan_freq_hr[:, np.newaxis]  # m

# calculate baselines in lambda
uu_hr = uu_hr / wavelengths_hr  # [lambda]
vv_hr = vv_hr / wavelengths_hr  # [lambda]

frequencies_hr = chan_freq_hr * 1e-9  # [GHz]

import matplotlib.pyplot as plt

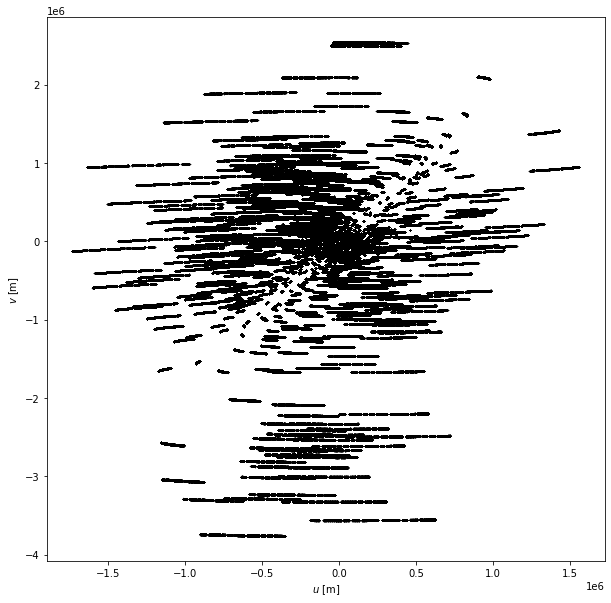

fig, ax = plt.subplots(nrows=1, figsize=(10, 10))
ax.scatter(uu_hr[::5], vv_hr[::5], s=1.5, linewidths=0.0, c="k")
ax.set_xlabel(r"$u$ [m]")
ax.set_ylabel(r"$v$ [m]")

Text(0, 0.5, '$v$ [m]')

plt.plot(chan_freq_hr, np.sum(data_hr.real, axis = 1))

[<matplotlib.lines.Line2D at 0x7f4642442358>]

Matching frequency order

#chan_freq_hr[::-1]

chan_freq_hr = chan_freq_hr[::-1]
uu_hr=uu_hr[::-1]
vv_hr=vv_hr[::-1]
weight_hr=weight_hr[::-1]
data_hr=data_hr[::-1]
mask_hr=mask_hr[::-1]

np.savez(
    "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_visibilities_high_res_test_flagged_rows.npz",
    frequencies=chan_freq_hr,  # [Hz]
    uu=uu_hr,  # lambda]
    vv=vv_hr,  # [lambda]
    weight=weight_hr,  # [1/Jy^2]
    data=data_hr,  # [Jy]
    mask=mask_hr,  # [Bool]
)

Concatenating low and high res data

uu_combined = np.concatenate((uu, uu_hr), axis = 1)
vv_combined = np.concatenate((vv, vv_hr), axis = 1)
weight_combined = np.concatenate((weight, weight_hr), axis = 1)
data_combined = np.concatenate((data, data_hr), axis = 1)
mask_combined = np.concatenate((mask, mask_hr), axis = 1)

import matplotlib.pyplot as plt
fig, ax = plt.subplots(nrows=1, figsize=(10, 10))
ax.scatter(uu_combined[::5], vv_combined[::5], s=1.5, linewidths=0.0, c="k")
ax.set_xlabel(r"$u$ [m]")
ax.set_ylabel(r"$v$ [m]")

Text(0, 0.5, '$v$ [m]')

Saving data

# save data to numpy file for later use
np.savez(
    "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_visibilities_combined_flagged_rows_flipped_double_check.npz",
    frequencies=chan_freq,  # [Hz]
    uu=uu_combined,  # lambda]
    vv=vv_combined,  # [lambda]
    weight=weight_combined,  # [1/Jy^2]
    data=data_combined,  # [Jy]
    mask=mask_combined,  # [Bool]
)

Gridding

%load_ext autoreload
%autoreload 2

from viscube import grid_cube_all_stats, load_and_mask, hermitian_augment
import numpy as np
import matplotlib.pyplot as plt

path = "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_visibilities_combined_flagged_rows_not_flipped_double_check.npz"
data = np.load(path)
freq = data["frequencies"]
u_raw = data["uu"]
v_raw = data["vv"]
vis_raw = data["data"]
weight_raw = data["weight"]
mask = data["mask"]

frequencies, u0, v0, vis0, weight0 = load_and_mask(freq, u_raw, v_raw, vis_raw, weight_raw, mask)

uu, vv, vis_re, vis_imag, wt = hermitian_augment(u0, v0, vis0, weight0)

np.max(vv)

3765930.387987173

max_uv_coord = np.max((np.max(np.abs(vv)), np.max(np.abs(uu))))
npix = 301
fov_arcseconds = 206265*npix/(2*max_uv_coord)

fov_arcseconds

8.243084524085402

mean_re, mean_im, std_re, std_im, counts, u_edges, v_edges = grid_cube_all_stats(
    frequencies=freq, uu=uu, vv=vv, vis_re=vis_re, vis_imag=vis_imag, weight=wt,
    npix = npix, window_name="kaiser_bessel",
    window_kwargs={"m": 6}  # only KB will use beta; m/normalize optional
)

100%|████████████| 80/80 [12:53<00:00,  9.66s/channel, coarse_std_im=74, coarse_std_re=74]

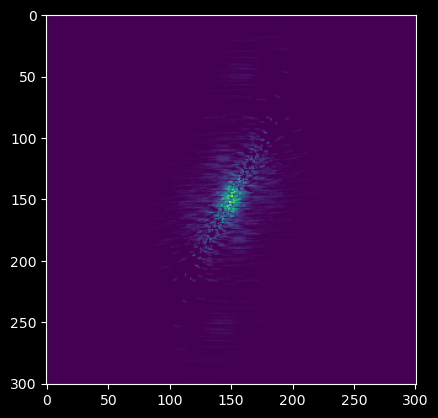

plt.imshow(counts[0])

<matplotlib.image.AxesImage at 0x7f0f9f87e5a0>

from supermage.utils.plotting import weighted_dirty_cube_tool, velocity_map
from supermage.utils.doppler_velocities import create_velocity_grid_stable

systemic_velocity = 1245.5
velocities_absolute, _ = create_velocity_grid_stable(freq[0]/1e9, freq[-1]/1e9, len(freq))
velocities = velocities_absolute.numpy() - systemic_velocity

roi_start, roi_end = 0, 502
fov_pixels = roi_end - roi_start
arcseconds_per_pixel = fov_arcseconds/npix

dirty_cube = weighted_dirty_cube_tool(mean_re, mean_im, roi_start, roi_end, std_grid_cube_real=std_re, std_grid_cube_imag=std_im, fft_norm="ortho")
extent = (-1*arcseconds_per_pixel*fov_pixels/2, arcseconds_per_pixel*fov_pixels/2, -1*arcseconds_per_pixel*fov_pixels/2, arcseconds_per_pixel*fov_pixels/2)

from supermage.utils.plotting import smooth_mask
masked_dirty_cube = smooth_mask(dirty_cube, clip = 25)*dirty_cube

RMS of the smoothed cube in mJy/beam: 6355.182175920252
final mask sum 659985

import matplotlib
import matplotlib.pyplot as plt
from matplotlib import animation, rc, colors
matplotlib.use("module://matplotlib_inline.backend_inline")

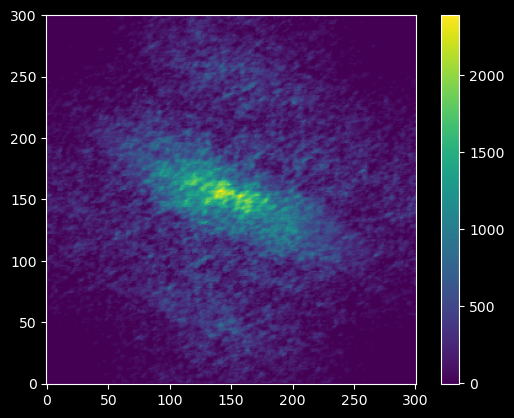

plt.imshow(np.sum(masked_dirty_cube, axis = 2),origin = "lower")
plt.colorbar()
plt.show()

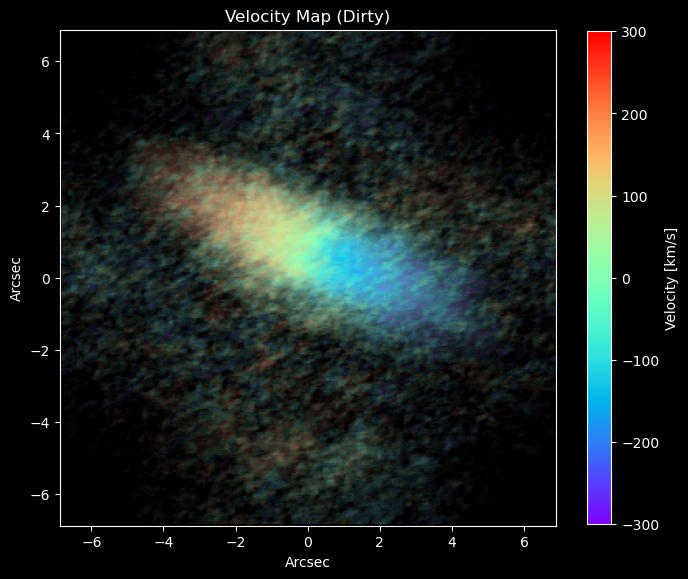

vel_map = velocity_map(masked_dirty_cube, velocities)

plt.style.use('dark_background')
fig, ax1 = plt.subplots(1, 1, figsize = (8, 8))
ax1.set_aspect('equal', adjustable='box')

divnorm=colors.TwoSlopeNorm(vcenter=0., vmin = -300, vmax = 300)
im11 = ax1.imshow(vel_map, cmap = "rainbow", norm = divnorm, origin = "lower",  extent=extent)
c_white = matplotlib.colors.colorConverter.to_rgba('white',alpha = 0)
c_black= matplotlib.colors.colorConverter.to_rgba('black',alpha = 1)
cmap_rb = matplotlib.colors.LinearSegmentedColormap.from_list('rb_cmap',[c_black, c_white],256)
im12 = ax1.imshow(np.sum(masked_dirty_cube, axis = 2), cmap = cmap_rb, origin = "lower",  extent=extent)

fig.colorbar(im11, label = "Velocity [km/s]", shrink = 0.8)
ax1.set_xlabel("Arcsec")
ax1.set_ylabel("Arcsec")
ax1.set_title("Velocity Map (Dirty)")
#plt.grid(lw = 0.3)
plt.show()

from supermage.utils.plotting import smooth_mask
super_masked_dirty_cube = smooth_mask(dirty_cube, clip = 85)*dirty_cube
vel_map = velocity_map(super_masked_dirty_cube, velocities)

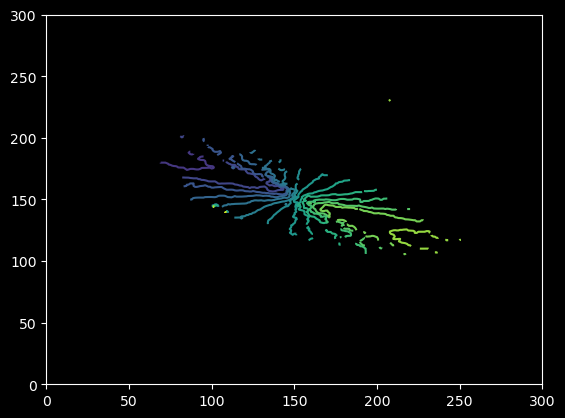

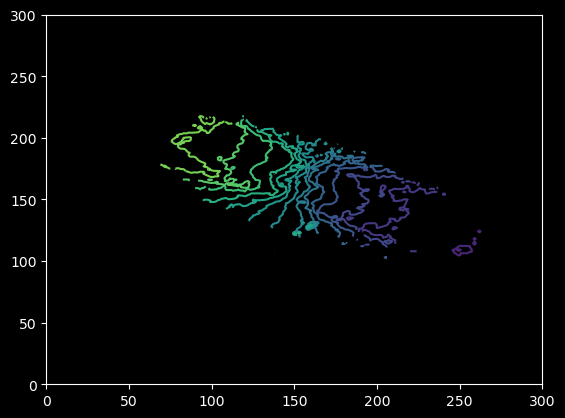

plt.contour(vel_map, levels = np.linspace(-300, 300, 20))

RMS of the smoothed cube in mJy/beam: 6355.182175920252
final mask sum 102774

/home/darthbarth/Code/supermage/supermage/utils/plotting.py:212: RuntimeWarning: invalid value encountered in divide
  vel_map = np.sum(cube * velocities[None, None, :], axis=2) / np.sum(cube, axis=2)

<matplotlib.contour.QuadContourSet at 0x7f10c796ee40>

import matplotlib
import matplotlib.pyplot as plt
from matplotlib import animation, rc, colors
matplotlib.use("module://matplotlib_inline.backend_inline")

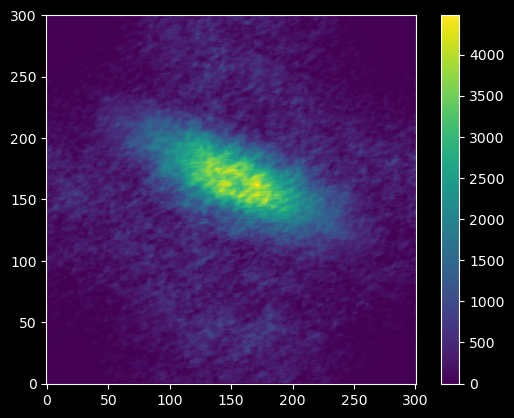

plt.imshow(np.sum(masked_dirty_cube, axis = 2),origin = "lower")
plt.colorbar()
plt.show()

/tmp/ipykernel_4110966/3148919110.py:4: MatplotlibDeprecationWarning: Auto-close()ing of figures upon backend switching is deprecated since 3.8 and will be removed in 3.10.  To suppress this warning, explicitly call plt.close('all') first.
  matplotlib.use("module://matplotlib_inline.backend_inline")

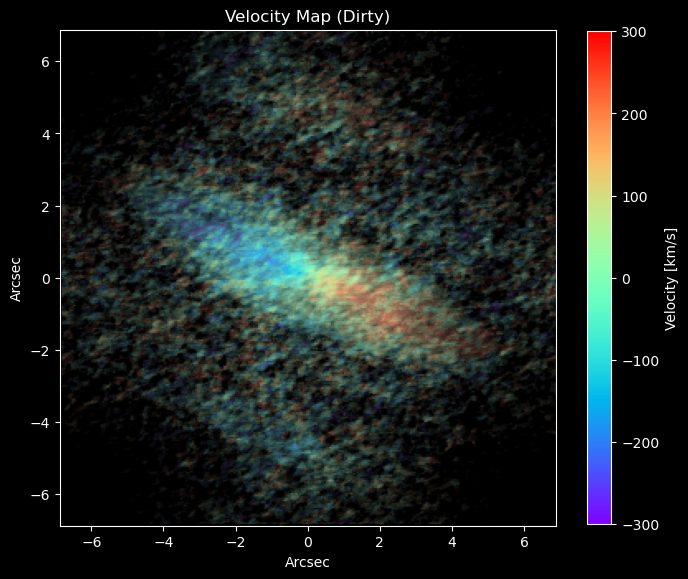

vel_map = velocity_map(masked_dirty_cube, velocities)

plt.style.use('dark_background')
fig, ax1 = plt.subplots(1, 1, figsize = (8, 8))
ax1.set_aspect('equal', adjustable='box')

divnorm=colors.TwoSlopeNorm(vcenter=0., vmin = -300, vmax = 300)
im11 = ax1.imshow(vel_map, cmap = "rainbow", norm = divnorm, origin = "lower",  extent=extent)
c_white = matplotlib.colors.colorConverter.to_rgba('white',alpha = 0)
c_black= matplotlib.colors.colorConverter.to_rgba('black',alpha = 1)
cmap_rb = matplotlib.colors.LinearSegmentedColormap.from_list('rb_cmap',[c_black, c_white],256)
im12 = ax1.imshow(np.sum(masked_dirty_cube, axis = 2), cmap = cmap_rb, origin = "lower",  extent=extent)

fig.colorbar(im11, label = "Velocity [km/s]", shrink = 0.8)
ax1.set_xlabel("Arcsec")
ax1.set_ylabel("Arcsec")
ax1.set_title("Velocity Map (Dirty)")
#plt.grid(lw = 0.3)
plt.show()

/home/darthbarth/Code/supermage/supermage/utils/plotting.py:212: RuntimeWarning: invalid value encountered in divide
  vel_map = np.sum(cube * velocities[None, None, :], axis=2) / np.sum(cube, axis=2)

from supermage.utils.plotting import smooth_mask
super_masked_dirty_cube = smooth_mask(dirty_cube, clip = 85)*dirty_cube
vel_map = velocity_map(super_masked_dirty_cube, velocities)
plt.contour(vel_map, levels = np.linspace(-300, 300, 20))

RMS of the smoothed cube in mJy/beam: 5542.45732671001
final mask sum 25834

<matplotlib.contour.QuadContourSet at 0x75aaf2cb5490>

import numpy as np
import matplotlib
matplotlib.use("module://ipympl.backend_nbagg")

import matplotlib.pyplot as plt
from ipywidgets import interact, IntSlider

# dirty_cube: (ny, nx, nchan)
nchan = masked_dirty_cube.shape[2]
lo, hi = np.nanpercentile(masked_dirty_cube, [1, 99])  # compute once for stable contrast

fig, ax = plt.subplots(figsize=(6, 6))
im = ax.imshow(masked_dirty_cube[:, :, 0], origin="lower", cmap="gray", vmin=lo, vmax=hi)
cb = plt.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
ax.set_xlabel("x pixel"); ax.set_ylabel("y pixel")
title = ax.set_title("Channel 0")
plt.tight_layout()

def show_channel(idx):
    im.set_data(dirty_cube[:, :, idx])
    # Optional: show frequency if provided
    if 'frequencies' in globals() and frequencies is not None and len(frequencies) == nchan:
        f = frequencies[idx]
        if f > 1e8:  # looks like Hz
            title.set_text(f"Channel {idx} — f = {f/1e9:.6f} GHz")
        else:
            title.set_text(f"Channel {idx} — f = {f:.6f} (units)")
    else:
        title.set_text(f"Channel {idx}")
    fig.canvas.draw_idle()

_ = interact(
    show_channel,
    idx=IntSlider(min=0, max=nchan-1, step=1, value=0, description="Channel"),
)

plt.close('all')

max_uv_coord

3765930.387987173

save_dir1 = "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/gridded_visibilities_highres_only.npz"
np.savez(
        save_dir1,
        vis_bin_re   = mean_re,
        vis_bin_imag = mean_im,
        std_bin_re   = std_re,
        std_bin_imag = std_im,
        mask         = counts > 0,
        max_uv = np.array([max_uv_coord])
    )

import numpy as np

def weighted_dirty_cube_tool(
    vis_bin_re_cube, vis_bin_imag_cube,
    roi_start, roi_end,
    std_grid_cube_real=None,
    std_grid_cube_imag=None,
    fft_norm="backward",
    return_snr=False,
    robust=0.0,                 # CASA Briggs robust in [-2, +2]
):
    """
    Build dirty (and optionally SNR) cube from per-cell *means* by
    reweighting with a weight grid (Σw or counts), applying Briggs weighting,
    and using the real part (no Ricean bias).

    Args
    ----
    vis_bin_*_cube : (F, Nu, Nv) arrays of per-cell *mean* visibilities
    std_grid_cube_* : (F, Nu, Nv) arrays with per-cell std (or 1/sqrt(weight));
                      if None, defaults to 1 (i.e., equal natural weights)
    robust : CASA Briggs robust parameter [-2 .. +2]
             ~+2 -> natural, ~-2 -> uniform, 0 -> balanced
    """
    F, Nu, Nv = vis_bin_re_cube.shape
    dirty_cube = []

    # --- Build NATURAL weight grid from provided per-cell std maps ---
    if std_grid_cube_real is None:
        std_grid_cube_real = np.ones_like(vis_bin_re_cube)
    if std_grid_cube_imag is None:
        std_grid_cube_imag = np.ones_like(vis_bin_imag_cube)

    # average real/imag stdev estimates; guard against zeros/nans/infs
    std_averaged = np.nan_to_num(
        np.mean((std_grid_cube_real, std_grid_cube_imag), axis=0),
        nan=0.0, posinf=0.0, neginf=0.0
    )
    # if a cell has no variance info (0), give it effectively zero weight
    std_averaged[np.abs(std_averaged) < 1e-12] = 1e12

    w_nat_cube = 1.0 / (std_averaged ** 2)   # natural weights per uv-cell

    # --- CASA-like Briggs weighting (per-plane) ---
    # Use the common practical form:
    #   w_briggs = w_nat / ( 1 + (f * w_nat / w_mean)^2 )
    # with f = 5 * 10^{-robust}. This approximates CASA behavior:
    #   robust ~ +2 -> w_briggs ≈ w_nat (natural)
    #   robust ~ -2 -> stronger uniformization
    f_scale = 5.0 * (10.0 ** (-float(robust)))

    for i in range(F):
        w_nat = w_nat_cube[i]

        # mean of strictly positive weights to avoid division artifacts
        pos = w_nat > 0
        if np.any(pos):
            w_mean = np.mean(w_nat[pos])
        else:
            w_mean = 1.0

        # Briggs reweighting factor
        t = (f_scale * w_nat / (w_mean if w_mean != 0 else 1.0)) ** 2
        w_briggs = w_nat / (1.0 + t)

        # recover "sum" grid from *mean* vis grid by multiplying by weights
        sum_grid = (vis_bin_re_cube[i] + 1j * vis_bin_imag_cube[i]) * w_briggs

        # inverse FFT to image plane (real part; Hermitian symmetry assumed from gridding)
        img = np.fft.fftshift(np.fft.ifft2(np.fft.ifftshift(sum_grid), norm=fft_norm)).real

        # crop ROI
        img_roi = img[roi_start:roi_end, roi_start:roi_end]
        dirty_cube.append(img_roi)

    dirty_cube = np.stack(dirty_cube, axis=-1)

    if not return_snr:
        return dirty_cube

    # Optional: return a very rough per-pixel SNR cube using
    # sqrt of summed weights as a proxy for inverse noise (per plane).
    snr_cube = []
    for i in range(F):
        w_nat = w_nat_cube[i]
        pos = w_nat > 0
        w_mean = np.mean(w_nat[pos]) if np.any(pos) else 1.0
        t = (f_scale * w_nat / (w_mean if w_mean != 0 else 1.0)) ** 2
        w_briggs = w_nat / (1.0 + t)
        # noise ~ 1/sqrt(sum w), so scale image by sqrt(sum w)
        wsum = np.sum(w_briggs)
        scale = np.sqrt(wsum) if wsum > 0 else 1.0

        # re-create the same dirty-plane (as above) and scale
        sum_grid = (vis_bin_re_cube[i] + 1j * vis_bin_imag_cube[i]) * w_briggs
        img = np.fft.fftshift(np.fft.ifft2(np.fft.ifftshift(sum_grid), norm=fft_norm)).real
        img_roi = img[roi_start:roi_end, roi_start:roi_end] * scale
        snr_cube.append(img_roi)

    snr_cube = np.stack(snr_cube, axis=-1)
    return dirty_cube, snr_cube
