CASA I/O: Intro tutorial for extracting data from MS#
This tutorial describes the simplest, most flexible way to extract data from measurement sets into Python memory/numpy files. To follow this tutorial, you will need to have installed casatools, casatasks, as well as have downloaded and calibrated a measurement set.
%load_ext autoreload
%autoreload 2
The autoreload extension is already loaded. To reload it, use:
%reload_ext autoreload
import os
import numpy as np
import matplotlib.pyplot as plt
import casatools
from casatasks import listobs # uvcontsub, cvel (optional; shown later)
from viscube import sigma_by_baseline_scan_time_diff
from astropy.constants import c
Step 0: Inspect your measurement set (note spectral windows (spws), numbers of channels, etc)#
ms_path = "/home/darthbarth/Big_red/NGC4697/ngc4697_high_res/NGC4697_bary_10kms.ms.split.cal.contsub" #path to your measurement set
assert os.path.exists(ms_path), f"MS not found: {ms_path}"
# Write listobs to a text file so you can quickly inspect SPWs/fields/scans
listobs_out = "listobs.txt"
listobs(vis=ms_path, listfile=listobs_out, overwrite=True)
print(f"Wrote: {listobs_out}")
Wrote: listobs.txt
# Quick SPW / datadesc overview
msmd = casatools.msmetadata()
msmd.open(ms_path)
ddids = msmd.datadescids()
print("Available DATA_DESC_IDs:", ddids)
# Map ddid -> spw id
for ddid in ddids:
spw_id = msmd.spwfordatadesc(ddid)
nchan = msmd.nchan(spw_id)
print(f"ddid={ddid:>3} -> spw={spw_id:>3} with nchan={nchan}")
msmd.done()
Available DATA_DESC_IDs: [0 1]
ddid= 0 -> spw= 0 with nchan=80
ddid= 1 -> spw= 1 with nchan=80
True
Step 1: Select your SPW and load the relevant columns into memory#
In this example, we load the columns labeled antenna1, antenna2, uvw, flag, flag_row, weight, and data from SPW 0.
For combining observations with multiple SPWs, see the tutorial here instead.
datadescid = 0 # <-- set this to the ddid you want (single SPW setup)
data_column = "DATA" # or "CORRECTED_DATA", this part depends on the preprocessing pipeline you used
ms = casatools.ms()
ms.open(ms_path)
ms.selectinit(datadescid=int(datadescid))
# Read just what we need
query = ms.getdata([
"UVW", "ANTENNA1", "ANTENNA2",
"TIME", "SCAN_NUMBER", "DATA_DESC_ID",
"WEIGHT", "FLAG", "FLAG_ROW",
"AXIS_INFO",
data_column
])
ant1 = query["antenna1"] # (nrow,)
ant2 = query["antenna2"] # (nrow,)
uvw_m = query["uvw"] # (3, nrow) in meters
flag = query["flag"] # (npol, nchan, nrow) boolean
flag_row = query["flag_row"] # (nrow,) boolean
weight = query["weight"] # often (npol, nrow) but sometimes other shapes
time_s = query["time"] # (nrow,) seconds (CASA epoch)
scan = query["scan_number"] # (nrow,)
ddid = query.get("data_desc_id", None) # (nrow,) if returned
# DATA key may come back lowercased depending on CASA version
if data_column.lower() in query:
data = query[data_column.lower()] # (npol, nchan, nrow) complex
else:
data = query[data_column]
info = query["axis_info"]
chan_freq_hz = info["freq_axis"]["chan_freq"].flatten() # (nchan,)
# Reset selection + close
ms.selectinit(reset=True)
ms.close()
print("Raw shapes:")
print(" data:", data.shape)
print(" flag:", flag.shape)
print(" uvw_m:", uvw_m.shape)
print(" weight:", np.asarray(weight).shape)
print(" chan_freq_hz:", chan_freq_hz.shape)
Raw shapes:
data: (2, 80, 81795)
flag: (2, 80, 81795)
uvw_m: (3, 81795)
weight: (2, 81795)
chan_freq_hz: (80,)
Helpful tip: If you find that your kernel is dying during the above cell due to memory limitations, it may be helpful to iterate through the measurement set using ms.selectchannel(nchan=nch, start=ch0, width=1, inc=1) and a for loop over nch. For a tutorial on how to do that, visit this page
Step 2: Regularize the shape of the WEIGHT column#
CASA sometimes returns WEIGHT as (nrow,) or (1, nrow). We standardize it so later broadcasting works cleanly.
weight = np.asarray(weight)
npol, nchan, nrow = flag.shape
if weight.ndim == 1:
# treat as per-row weights, replicate for each polarization
assert weight.shape[0] == nrow
weight = np.tile(weight[None, :], (npol, 1))
elif weight.ndim == 2:
assert weight.shape[1] == nrow
if weight.shape[0] == 1 and npol > 1:
weight = np.tile(weight, (npol, 1))
else:
raise ValueError(f"Unexpected WEIGHT shape: {weight.shape}")
print("Normalized weight shape:", weight.shape) # (npol, nrow)
Normalized weight shape: (2, 81795)
Step 3: Flag data using FLAG_ROW#
Apply FLAG_ROW to every polarization and channel
flag = np.logical_or(flag, flag_row[None, None, :])
print("Flagged fraction (including FLAG_ROW):", float(flag.mean()))
Flagged fraction (including FLAG_ROW): 0.09407665505226481
Step 4: Remove autocorrelations#
xc = np.where(ant1 != ant2)[0]
data = data[:, :, xc]
flag = flag[:, :, xc]
uvw_m = uvw_m[:, xc]
weight = weight[:, xc]
time_s = time_s[xc]
scan = scan[xc]
if ddid is not None: ddid = ddid[xc]
ant1 = ant1[xc]
ant2 = ant2[xc]
print("After autocorr removal:")
print(" data:", data.shape)
print(" flag:", flag.shape)
print(" uvw_m:", uvw_m.shape)
print(" weight:", weight.shape)
After autocorr removal:
data: (2, 80, 77900)
flag: (2, 80, 77900)
uvw_m: (3, 77900)
weight: (2, 77900)
Step 5: Average polarizations (weighted), reshape flag to match#
# Broadcast weight to match (npol, nchan, nvis)
w_b = weight[:, None, :] # (npol, 1, nvis)
wsum = np.sum(w_b, axis=0) # (nchan, nvis)
wsum_safe = np.where(wsum > 0, wsum, 1.0)
data = np.sum(data * w_b, axis=0) / wsum_safe # (nchan, nvis)
flag = np.any(flag, axis=0) # (nchan, nvis)
weight_row = np.sum(weight, axis=0) # (nvis,)
time_row = time_s # (nvis,)
scan_row = scan # (nvis,)
ant1_row = ant1 # (nvis,)
ant2_row = ant2 # (nvis,)
print("After pol-avg:")
print(" data:", data.shape)
print(" flag:", flag.shape)
print(" weight_row:", weight_row.shape)
After pol-avg:
data: (80, 77900)
flag: (80, 77900)
weight_row: (77900,)
Step 6: Build flagged data mask#
mask = ~flag # (nchan, nvis)
print("Valid fraction:", float(mask.mean()))
Valid fraction: 0.9512195121951219
Step 7: Convert UVW from meters to lambda#
u_m, v_m, w_m = uvw_m
nu = chan_freq_hz[:, None] # (nchan, 1)
u_lam = (u_m[None, :] * nu / c.value) # (nchan, nvis)
v_lam = (v_m[None, :] * nu / c.value) # (nchan, nvis)
w_lam = (w_m[None, :] * nu / c.value) # (nchan, nvis)
print("u_lam/v_lam/w_lam:", u_lam.shape, v_lam.shape, w_lam.shape)
u_lam/v_lam/w_lam: (80, 77900) (80, 77900) (80, 77900)
Step 8: Ensure frequencies are increasing#
If working with continuum data, skip down to Step 8 (alternative for continuum data) instead!#
is_increasing = np.all(np.diff(chan_freq_hz) > 0)
print("Frequency increasing?", is_increasing)
if not is_increasing:
chan_freq_cube_hz = chan_freq_hz[::-1].copy()
data_cube = data[::-1].copy()
mask_cube = mask[::-1].copy()
u_cube = u_lam[::-1].copy()
v_cube = v_lam[::-1].copy()
w_cube = w_lam[::-1].copy()
else:
chan_freq_cube_hz = chan_freq_hz.copy()
data_cube = data.copy()
mask_cube = mask.copy()
u_cube = u_lam.copy()
v_cube = v_lam.copy()
w_cube = w_lam.copy()
# weights as cube-shaped array (handy later; still no gridding here)
weight_cube = np.tile(weight_row[None, :], (data_cube.shape[0], 1)).astype(float)
print("Cube shapes:")
print(" data_cube:", data_cube.shape)
print(" mask_cube:", mask_cube.shape)
print(" u_cube:", u_cube.shape)
print(" weight_cube:", weight_cube.shape)
Frequency increasing? False
Cube shapes:
data_cube: (80, 77900)
mask_cube: (80, 77900)
u_cube: (80, 77900)
weight_cube: (80, 77900)
Step 9: Generate baseline-scan uncertainties#
sigma_re_cube, sigma_im_cube = sigma_by_baseline_scan_time_diff(
data_cube, mask_cube,
time_row=time_row,
scan_row=scan_row,
ant1_row=ant1_row,
ant2_row=ant2_row,
min_pairs=8,
)
invvar_group_re = np.where(mask_cube, 1.0 / np.maximum(sigma_re_cube, 1e-12)**2, 0.0)
invvar_group_im = np.where(mask_cube, 1.0 / np.maximum(sigma_im_cube, 1e-12)**2, 0.0)

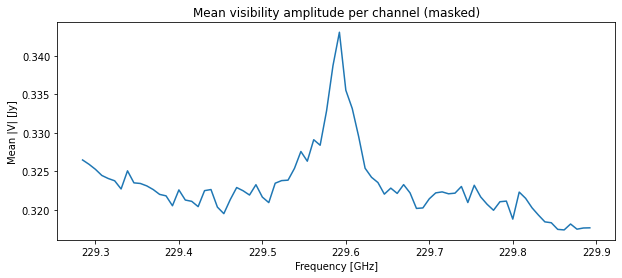

Step 10: Inspect data and save#
amp_mean = np.nanmean(np.where(mask_cube, np.abs(data_cube), np.nan), axis=1)
plt.figure(figsize=(10, 4))
plt.plot(chan_freq_cube_hz/1e9, amp_mean)
plt.xlabel("Frequency [GHz]")
plt.ylabel("Mean |V| [Jy]")
plt.title("Mean visibility amplitude per channel (masked)")
plt.show()
# UV coverage snapshots for a few channels
for k in [0, data_cube.shape[0]//2, data_cube.shape[0]-1]:
valid_k = mask_cube[k]
plt.figure(figsize=(6, 6))
plt.scatter(u_cube[k, valid_k][::2], v_cube[k, valid_k][::2], s=1, linewidths=0)
plt.xlabel("u [λ]"); plt.ylabel("v [λ]")
plt.title(f"UV coverage: chan {k} (f={chan_freq_cube_hz[k]/1e9:.6f} GHz)")
plt.axis("equal")
plt.show()
np.savez(
"cube_extracted_antennae.npz",
chan_freq_hz=chan_freq_cube_hz,
u=u_cube, v=v_cube, w=w_cube,
vis=data_cube,
weight=weight_cube,
sigma_re_cube = sigma_re_cube, sigma_im_cube = sigma_im_cube,
mask=mask_cube,
)
########################################################################################################
Step 8 (alternative for continuum data): Channel averaging#
is_increasing = np.all(np.diff(chan_freq_hz) > 0)
print("Frequency increasing?", is_increasing)
if not is_increasing:
chan_freq_work_hz = chan_freq_hz[::-1].copy()
data_work = data[::-1].copy()
mask_work = mask[::-1].copy()
u_work = u_lam[::-1].copy()
v_work = v_lam[::-1].copy()
w_work = w_lam[::-1].copy()
else:
chan_freq_work_hz = chan_freq_hz.copy()
data_work = data.copy()
mask_work = mask.copy()
u_work = u_lam.copy()
v_work = v_lam.copy()
w_work = w_lam.copy()
# ----------------------------------------
# 1) Average channels (continuum)
# ----------------------------------------
n_avg = 8 # fixed per your preference
nchan = data_work.shape[0]
n_new = (nchan // n_avg) * n_avg
print("nchan -> n_new:", nchan, "->", n_new)
# truncate to a multiple of n_avg
data_tr = data_work[:n_new]
u_tr = u_work[:n_new]
v_tr = v_work[:n_new]
w_tr = w_work[:n_new]
mask_tr = mask_work[:n_new]
freq_tr = chan_freq_work_hz[:n_new]
# reshape (n_new/n_avg, n_avg, nvis) then average over the chunk axis
data_avg = data_tr.reshape(n_new // n_avg, n_avg, -1).mean(axis=1)
u_avg = u_tr.reshape(n_new // n_avg, n_avg, -1).mean(axis=1)
v_avg = v_tr.reshape(n_new // n_avg, n_avg, -1).mean(axis=1)
w_avg = w_tr.reshape(n_new // n_avg, n_avg, -1).mean(axis=1)
# mask: majority vote within chunk
mask_avg = mask_tr.astype(float).reshape(n_new // n_avg, n_avg, -1).mean(axis=1) > 0.5
# averaged channel frequencies
chan_freq_avg_hz = freq_tr.reshape(n_new // n_avg, n_avg).mean(axis=1)
print("Averaged shapes:")
print(" data_avg:", data_avg.shape)
print(" mask_avg:", mask_avg.shape)
print(" chan_freq_avg_hz:", chan_freq_avg_hz.shape)
Frequency increasing? False
nchan -> n_new: 80 -> 80
Averaged shapes:
data_avg: (10, 77900)
mask_avg: (10, 77900)
chan_freq_avg_hz: (10,)
valid = mask_avg # (nchan_avg, nvis)
u_cont = u_avg[valid]
v_cont = v_avg[valid]
w_cont = w_avg[valid]
vis_cont = data_avg[valid]
# broadcast weights to (nchan_avg, nvis), then apply mask+flatten
weight_chan = np.tile(weight_row[None, :], (data_avg.shape[0], 1))
wt_cont = weight_chan[valid].astype(float)
print("Continuum vectors:")
print(" u_cont:", u_cont.shape)
print(" v_cont:", v_cont.shape)
print(" w_cont:", w_cont.shape)
print(" vis_cont:", vis_cont.shape)
print(" wt_cont:", wt_cont.shape)
Continuum vectors:
u_cont: (741000,)
v_cont: (741000,)
w_cont: (741000,)
vis_cont: (741000,)
wt_cont: (741000,)
Step 9: Generate baseline-scan uncertainties#
sigma_re_avg, sigma_im_avg = sigma_by_baseline_scan_time_diff(
data_avg, mask_avg,
time_row=time_row,
scan_row=scan_row,
ant1_row=ant1_row,
ant2_row=ant2_row,
min_pairs=8,
)
invvar_group_re_avg = np.where(
mask_avg,
1.0 / np.maximum(sigma_re_avg, 1e-12)**2,
0.0
)
invvar_group_im_avg = np.where(
mask_avg,
1.0 / np.maximum(sigma_im_avg, 1e-12)**2,
0.0
)
print("Uncertainty shapes (averaged cube):")
print(" sigma_re_avg:", sigma_re_avg.shape)
print(" sigma_im_avg:", sigma_im_avg.shape)
print(" invvar_group_re_avg:", invvar_group_re_avg.shape)
print(" invvar_group_im_avg:", invvar_group_im_avg.shape)
Uncertainty shapes (averaged cube):
sigma_re_avg: (10, 77900)
sigma_im_avg: (10, 77900)
invvar_group_re_avg: (10, 77900)
invvar_group_im_avg: (10, 77900)
Step 10: Flatten along frequencies#
valid = mask_avg # (nchan_avg, nvis)
u_cont = u_avg[valid]
v_cont = v_avg[valid]
w_cont = w_avg[valid]
vis_cont = data_avg[valid]
# broadcast weights to (nchan_avg, nvis), then apply mask+flatten
weight_chan = np.tile(weight_row[None, :], (data_avg.shape[0], 1)).astype(float)
wt_cont = weight_chan[valid]
# NEW: flatten baseline-derived uncertainties / invvars with the same mask
sigma_re_cont = sigma_re_avg[valid]
sigma_im_cont = sigma_im_avg[valid]
invvar_group_re_cont = invvar_group_re_avg[valid]
invvar_group_im_cont = invvar_group_im_avg[valid]
print("Continuum vectors:")
print(" u_cont:", u_cont.shape)
print(" v_cont:", v_cont.shape)
print(" w_cont:", w_cont.shape)
print(" vis_cont:", vis_cont.shape)
print(" wt_cont:", wt_cont.shape)
print(" sigma_re_cont:", sigma_re_cont.shape)
print(" sigma_im_cont:", sigma_im_cont.shape)
print(" invvar_group_re_cont:", invvar_group_re_cont.shape)
print(" invvar_group_im_cont:", invvar_group_im_cont.shape)
Continuum vectors:
u_cont: (741000,)
v_cont: (741000,)
w_cont: (741000,)
vis_cont: (741000,)
wt_cont: (741000,)
sigma_re_cont: (741000,)
sigma_im_cont: (741000,)
invvar_group_re_cont: (741000,)
invvar_group_im_cont: (741000,)
Step 11 (alternative for continuum data): Inspect data and save#
# UV coverage
step = max(1, u_cont.size // 200000)
plt.figure(figsize=(7, 7))
plt.scatter(u_cont[::step], v_cont[::step], s=1, linewidths=0)
plt.xlabel("u [λ]")
plt.ylabel("v [λ]")
plt.title("Continuum UV coverage (flattened after n_avg=8)")
plt.axis("equal")
plt.show()
np.savez(
"continuum_extracted_navg8.npz",
u=u_cont, v=v_cont, w=w_cont,
vis=vis_cont, weight=wt_cont,
chan_freq_avg_hz=chan_freq_avg_hz,
sigma_re_cont=sigma_re_cont, sigma_im_cont=sigma_im_cont
)
